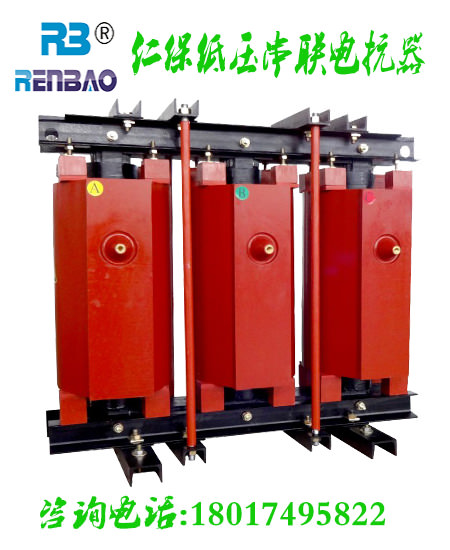

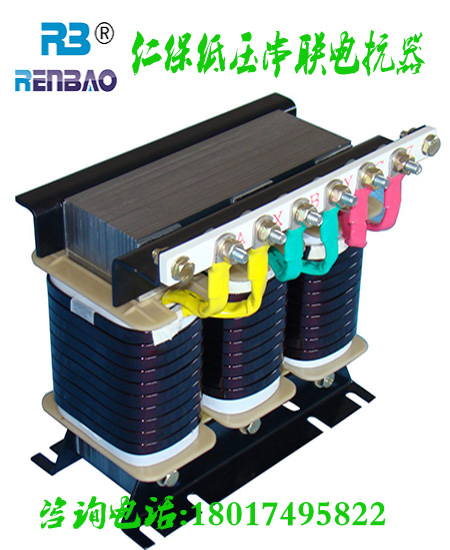

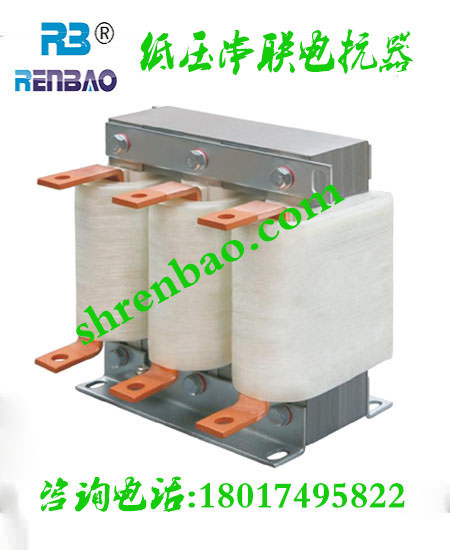

串联电抗器概述
CKS型串联电抗器与电容器组配合用于电力网络中限制电容器组合闸时的涌流和高次谐波引起的过电流。对电容器的安全运行,改善电网质量具有良好作用。

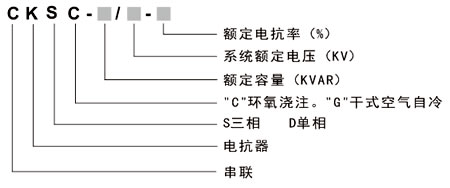

串联电抗器型号含义
串联电抗器技术数据
电抗器型号 |
匹配电容器规格(KVAR) |
电抗器容量(KVAR) |
电感量(mH) |
外限尺寸(mm) |
安装尺寸 |
CKSC-6/10-6% |
100 |
6 |
3×233.223 |
680×450×610 |
400×350,4-φ12 |
CKSC-9/10-6% |
150 |
9 |
3×153.514 |
740×450×640 |
400×350,4-φ12 |
CKSC-12/10-6% |
200 |
12 |
3×115.501 |
740×500×700 |
500×400,4-φ14 |
CKSC-18/10-6% |
300 |
18 |
3×77.246 |
770×500×730 |
500×400,4-φ14 |
CKSC-27/10-6% |
450 |
27 |
3×51.388 |
800×500×700 |
500×400,4-φ14 |
CKSC-30/10-6% |
500 |
30 |
3×46.289 |
830×500×780 |
600×400,4-φ14 |
CKSC-36/10-6% |
600 |
36 |
3×38.500 |
860×500×780 |
600×400,4-φ14 |
CKSC-45/10-6% |
750 |
45 |
3×30.781 |
890×550×830 |
600×450,4-φ14 |
CKSC-54/10-6% |
900 |
54 |
3×25.694 |
890×550×900 |
600×450,4-φ14 |
CKSC-60/10-6% |
1000 |
60 |
3×23.100 |
920×550×905 |
600×450,4-φ14 |
CKSC-72/10-6% |
1200 |
72 |
3×19.250 |
920×550×990 |
600×450,4-φ14 |
CKSC-90/10-6% |
1500 |
90 |
3×15.410 |
950×550×1030 |
600×450,4-φ14 |
CKSC-108/10-6% |
1800 |
108 |
3×12.833 |
1100×600×1100 |
700×500,4-φ16 |
CKSC-126/10-6% |
2100 |
126 |
3×11.005 |
1130×600×1150 |
700×500,4-φ16 |
CKSC-144/10-6% |
2400 |
144 |
3×9.625 |
1130×600×1230 |
700×500,4-φ16 |
CKSC-162/10-6% |
2700 |
162 |
3×8.559 |
1310×650×1150 |
800×550,4-φ18 |
CKSC-180/10-6% |
3000 |
180 |
3×7.700 |
1310×650×1200 |
800×550,4-φ18 |
CKSC-198/10-6% |
3300 |
198 |
3×7.002 |
1340×650×1240 |
800×600,4-φ18 |
CKSC-216/10-6% |
3600 |
216 |
3×6.420 |
1340×700×1300 |
800×600,4-φ18 |
CKSC-240/10-6% |
4000 |
240 |
3×5.778 |
1330×700×1350 |
800×600,4-φ18 |
CKSC-252/10-6% |
4200 |
252 |
3×5.503 |
1370×700×1390 |
800×600,4-φ18 |
CKSC-288/10-6% |
4800 |
288 |
3×4.814 |
1370×700×1470 |
800×600,4-φ18 |
CKSC-300/10-6% |
5000 |
300 |
3×4.622 |
1400×800×1480 |
900×700,4-φ18 |
CKSC-360/10-6% |
6000 |
360 |
3×3.851 |
1430×800×1560 |
900×700,4-φ18 |
CKSC-480/10-6% |
8000 |
480 |
3×2.888 |
1610×800×1700 |
1000×700,4-φ18 |
CKSC-12/10-12% |
100 |
12 |
3×551.074 |
740×500×700 |
500×400,4-φ14 |
CKSC-18/10-12% |
150 |
18 |
3×367.383 |
770×500×800 |
500×400,4-φ14 |
CKSC-24/10-12% |
200 |
24 |
3×275.537 |
800×500×860 |
500×400,4-φ14 |
CKSC-36/10-12% |
300 |
36 |
3×183.691 |
830×500×930 |
600×400,4-φ14 |
CKSC-54/10-12% |
450 |
54 |
3×121.897 |
890×550×990 |
600×450,4-φ14 |
CKSC-120/10-12% |
1000 |
120 |
3×54.993 |
980×550×990 |
700×450,4-φ16 |
CKSC-14410-12% |
1200 |
144 |
3×45.843 |
1010×600×1220 |
700×500,4-φ16 |
CKSC-180/10-12% |
1500 |
180 |
3×36.637 |
1190×600×1200 |
800×550,4-φ16 |
CKSC-216/10-12% |
1800 |
216 |
3×30.545 |
1220×600×1260 |
800×500,4-φ16 |
CKSC-252/10-12% |
2100 |
252 |
3×26.190 |
1250×600×1300 |
800×500,4-φ16 |
CKSC-288/10-12% |
2400 |
288 |
3×22.902 |
1330×700×1460 |
800×600,4-φ16 |
CKSC-324/10-12% |
2700 |
324 |
3×20.363 |
1360×700×1490 |
900×600,4-φ18 |
CKSC-360/10-12% |
3000 |
360 |
3×18.331 |
1390×700×1520 |
900×600,4-φ16 |
CKSC-396/10-12% |
3300 |
396 |
3×16.657 |
1390×700×1600 |
900×600,4-φ16 |
CKSC-432/10-12% |
3600 |
432 |
3×15.272 |
1600×800×1470 |
900×700,4-φ18 |
CKSC-480/10-12% |
4000 |
480 |
3×13.748 |
1600×800×1580 |
900×700,4-φ18 |
CKSC-504/10-12% |
4200 |
504 |
3×13.088 |
1630×800×1560 |
900×700,4-φ18 |
CKSC-576/10-12% |
4800 |
576 |
3×11.456 |
1630×800×1700 |
900×700,4-φ18 |
CKSC-600/10-12% |
5000 |
600 |
3×10.994 |
1660×800×1960 |
900×700,4-φ18 |
